產品規格書/Specification
|
產品/product: |

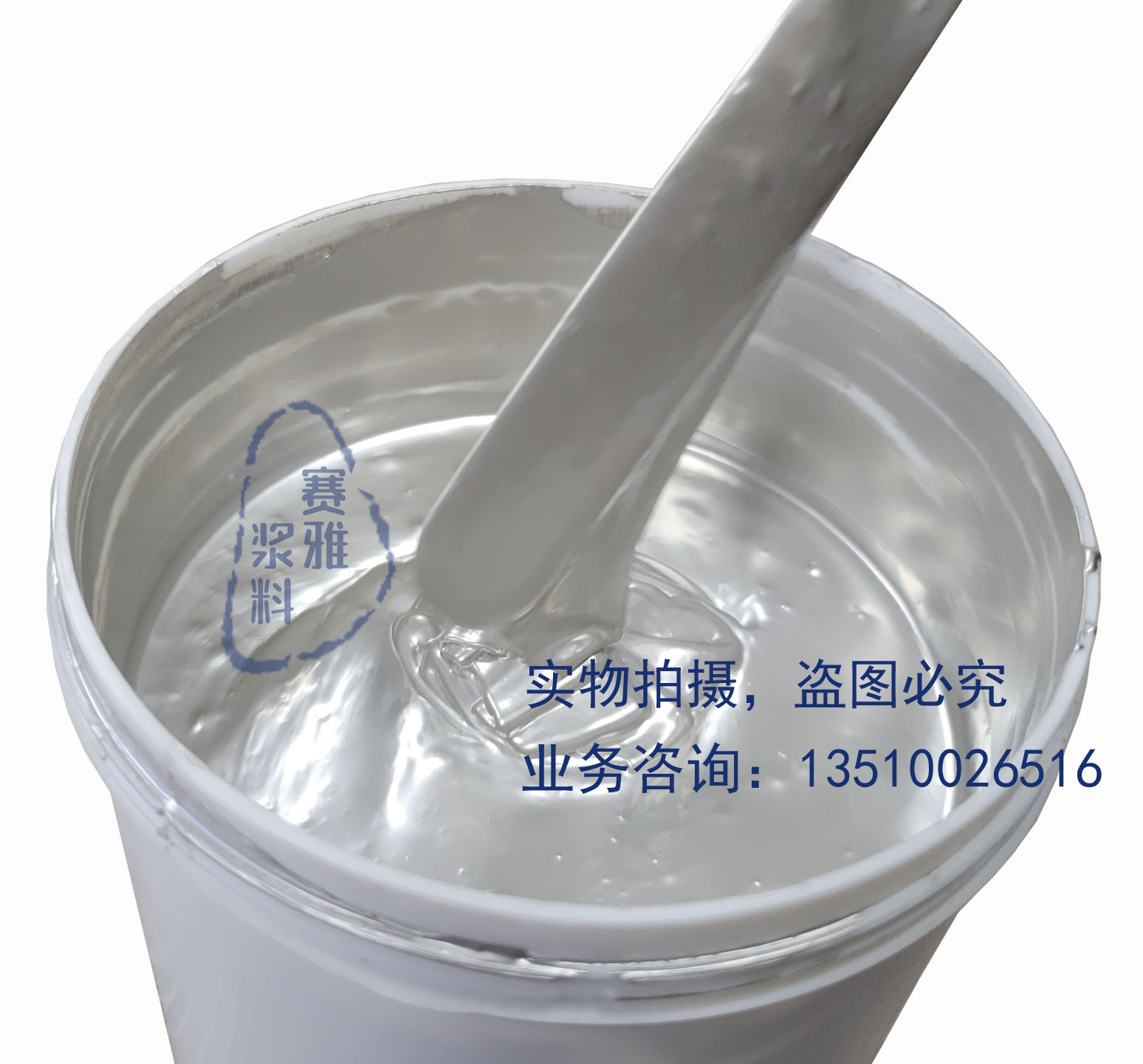

低溫銀漿/ Silver paste |
|
料號/Part number: |
01L-3611D |
※ 80~120℃加熱固化銀漿
※ 適用于柔性基材，陶瓷，玻璃，金屬等基材電極
※ 點膠，印刷均可
※ 銀含量高，電阻低
適用范圍/Application:
單組分導體漿料系列，可廣泛應用于薄膜開關、柔性印刷電路、筆記本鍵盤電路、手機鍵盤屏蔽 線路、多層線路印刷、射頻干擾屏蔽、RFID、玩具、學習機電路印刷和觸點印刷等領域，在氧化鋁陶 瓷、微晶玻璃陶瓷、PET、PC 等片材上均可使用，可提供優良的導電性和薄膜粘接性，有著良好的印 刷性、抗氧化性、柔性和極強的附著力，其導電性能不會因?yàn)橛∷⒑蟮募庸こ尚突虍a(chǎn)品使用時的彎曲 變化發生大的偏移，絲網印刷、噴涂均可。
01L-2200 series, single group slurry , widely used in thin film switch, flexible printed circuit, laptop keyboard circuit, phone shielding keyboard circuit, multilayer printed circuit, RF interference shielding, RFID, toys, learning machine printed circuit and contact printing and other fields, in the alumina ceramic, microcrystalline glass ceramics, pet, PC, and other sheet can be used, can provide excellent electrical conductivity or adhesive film, has a good printing, oxidation resistance, flexible and strong adhesion, the conductive performance is not because of the occurrence of large offset printing process or product using the bending changes, screen printing, spray can.
使用條件/Operating conditions：
|
基材 Substrate |
陶瓷基板、PET、聚酯薄膜等片材 Suitable for Ceramic, Pet, PI etc |
|
使用方法 Method of use |
200-250目絲網印刷 200-250 mesh stainless screen |
|
流平 Levelling |
3-5min minutes at room temperature 室溫下流平3-5分鐘（時間根據流平的實際情況決定）。 |
|
固化 Curing conditions |
在恒溫烘箱80-120℃，10-30分鐘 80-120℃ 10-30 min |
|
Thinner |
ST-1000 |
性能/Characteristics：
1. 漿料性能/Paste Characteristics：
|
性能Characteristic |
標準Standard |
測試方法及條件 Test method and conditions |
|
|
1 |
Fineness |
≤5μm |
FOG test |
|
2 |
Viscosity |
80-280Pa.s |
Brookfield HBT utility cup and spindle (SC4-14/6R), 10rpm, 25±1℃， Brookfield HBT（博利飛）粘度計， 轉子SC4-14/6R), 10rpm, 25±1℃ 粘度可根據用戶實際需要調節。 |
|
3 |
固體含量content |
65-70% |
銀 silver Glue |
2. 燒結后特性/Characteristics after firing：
在1燒結條件下，Check fired film produced under the conditions specified in 1）
|
特性 Characteristics |
Standard 標準 |
測試方法和條件 Test method and conditions |
|
|
4 |
Resistivity 方阻 |
≤25mΩ/□ |
固態膜厚8-20μm，測試圖形100mm*1mm Cured film thickness 10-25μm, test pattern 100mm * 1mm |
|
5 |
Adhesion strength 附著力 |
無脫落 Not fall off
|
3M 600#膠帶 90°拉 3M 600#Tape 90°Pull
|
|
硬度 Hardness |
2H |
鉛筆硬度 Pencil hardness |
|
保存條件，有效期/Storage condition and Term of validity
產品應在5-15℃的環境溫度下密封儲存，有效期為產品發貨之日起1年。
The product shall be guaranteed for 1 year after shipping date, keep tightly under at 5-15℃
包裝方式/Packaging method：
標準包裝，1000g/罐, 樣品可提供 200 克小罐包裝
Standard package 1000g/can，if you need sample to test, available 200g with small package.
